Standard Product Specification
| Density | 1.2 +/-0.05 g/cm3 |
| Hardness | 70 +/-5 Shore A |
| Tensile Strength | ≥20 MPa |
| Elongation at Break | ≥500% |
| Length | 10 meters to 20 meters |
| Thickness | ≥1mm |
| Width | ≤2 meters |
| Working Temperature | -30℃ to +160℃ |
Remarks: Technical specifications can be adjusted according to customer’s requirements.

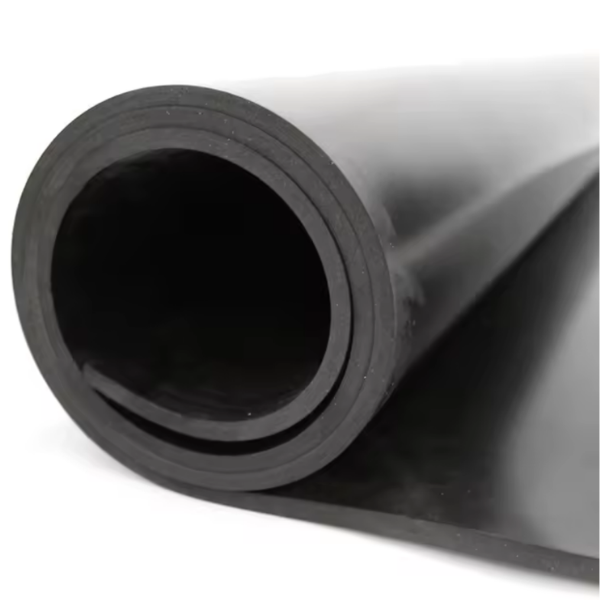

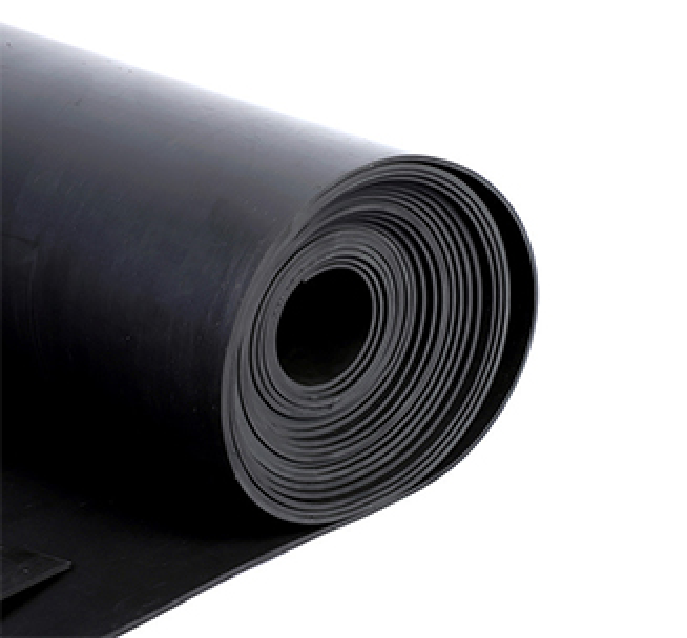

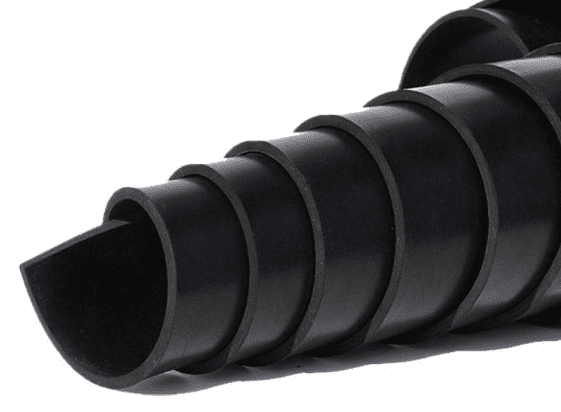

Features of HNBR Rubber Sheet
- Premium grade material and higher price;
- Superior resistance to oil, gas, and fuel;
- Excellent resistance to ozone and aging;
- Greater thermal stability and oil resistance compared to NBR;
- Superior tensile and tear strength properties;
- Extensive working temperature range.
Applications of Hydrogenated Nitrile Butadiene Rubber
HNBR rubber sheets are commonly used in the aerospace industry, automotive manufacturing, oil drilling, machinery manufacturing, chemical industry, and virtually all fields where contact with oils and gases is required. Common application areas include: oil drilling components, fuel transport system seals and gasket.
