Door Rubber Seal Information
|
Material
|
solid EPDM rubber, sponge EPDM rubber, Metal
|
|
Color
|
Black, any other color is available
|
|
Hardness (Shore A)
|
70 ±5 as standard or per request 25±5 as standard or per request
|
|
Specific gravity
|
1.2 to 1.35 g/cm³,0.5 to 0.7 g/cm³
|
|
Tensile strength
|
10MPA
|
|
Temperature Range
|
-40 °F – 248 °F (-40°C – 120°C)
|
|
Tolerance
|
RMA Standard Cross-sectional Tolerance E2, or per request
|
Technical Advantages

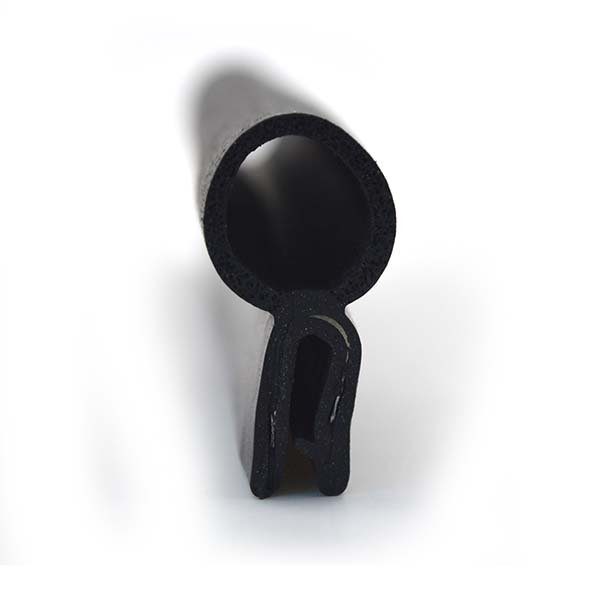

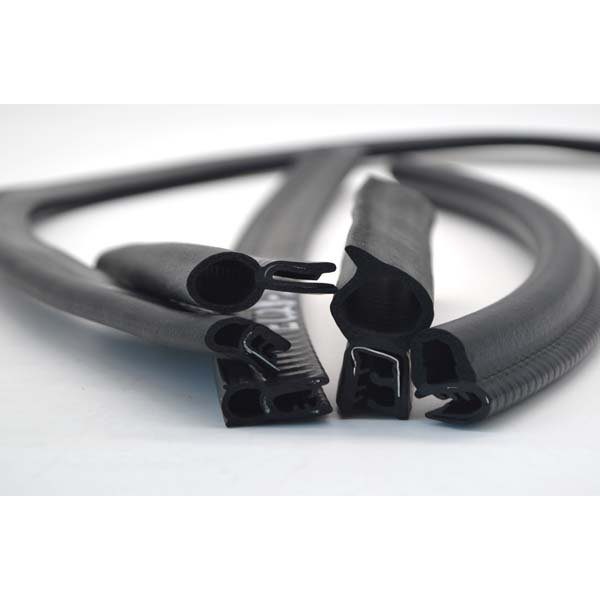

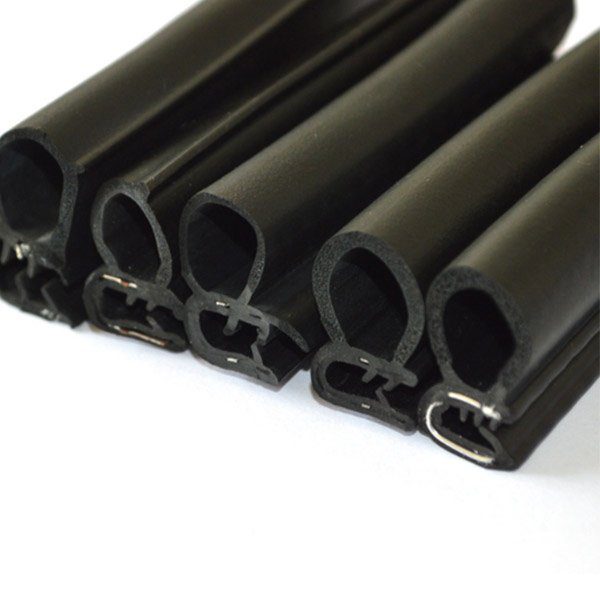

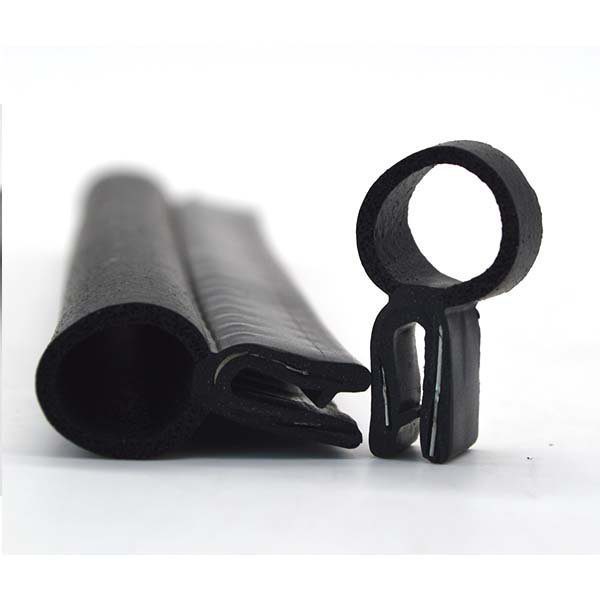

The metal insert rubber Co-Extruded profile door seal permanently connects the high-quality epdm rubber with the precise metal paste, creating a seamless integration that eliminates the risks of dimming. The epdm component provides excellent weather resistance with a temperature range of -40 c to 120 c, while the metal core provides stability in size and safe installation. This design provides reliable performance in extreme conditions, maintaining perfect hermetic integrity even at frequent use and mechanical stress.
