Material: EPDM
Manufacturing Process: Rubber mixing, EPDM rubber extrusion, salt bath vulcanization, taping
MOQ: 1200 meters
Product Specification:
| Type | Product Image | Specification (width x height/mm) | Color | Material | Packaging | Tape |

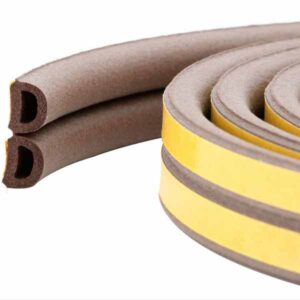

| D |  |
9X6mm 9X8mm 12X10mm 14X12mm Suitable for gaps from 2 to 7mm |
Brown White Grey Black |
EPDM | 150m/roll 1200m/carton |
Fiberglass mesh tape Self-adhesive double tape Yellow color Imported |
| E |  |
9X4mm Suitable for gaps from 2 to 3.5mm | Brown White Grey Black |
EPDM | 150m/roll 1200m/carton |
Fiberglass mesh tape Self-adhesive double tape yellow color Imported |

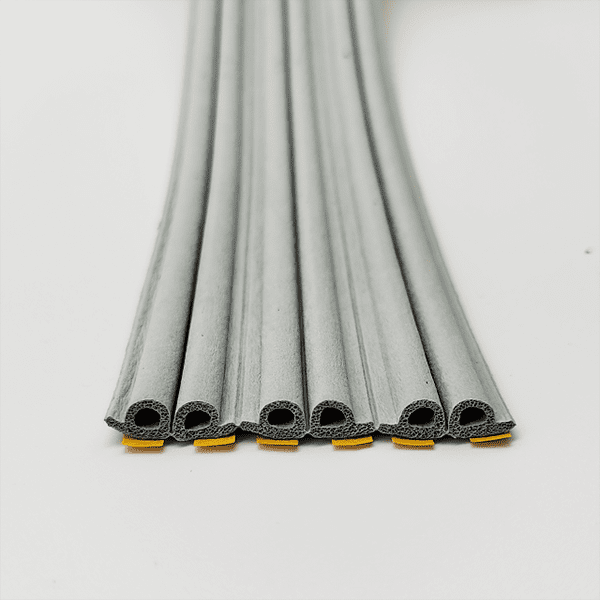

| P |  |
9X5.5mm Suitable for gaps from 2 to 5mm | Brown White Grey Black |
EPDM | 150m/roll 1200m/carton |
Fiberglass mesh tape Self-adhesive double tape yellow color Imported |

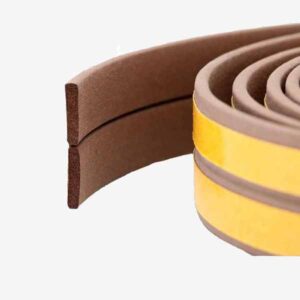

| I |  |
9X2mm Suitable for gaps from 1 to 2mm | Brown White Grey Black |
EPDM | 150m/roll 1200m/carton |
Fiberglass mesh tape Self-adhesive double tape yellow color Imported |
| Remarks: All self-adhesive seal strips use fiberglass mesh tape in yellow color. | ||||||
Technical Data Sheet:
| No. | Test Item | Test Method | Result | |
| 1 | 180°Peel Strength | With reference to ASTM D3330/D3330M-04(2018) Method A and client’s requirement | 7.2N/10mm | |
| 2 | Chemical Resistance | With reference to ASTM D6389-17 & ASTM D3330/D3330M-04(2018) Method A & ASTM D4 12-16 Method A and client’s requirement | See result | |
| 3 | Compression Set | With reference to ASTM D395-18 Method B and the client’s requirement | 23% | |
| 4 | Temperature Change Test | Provided by client | No blistering, cracking or discoloration | |
| 5 | Tensile Test | With reference to ASTM D4 12-16 Method A and the client’s requirement | Maximum Force | 154N |
| Elongation at Break | 2.2% | |||
| 6 | Brittleness Temperature by Impact | With reference to ASTM D2137-11(2018) Method C and the client’s requirement | Number of specimen failures: 0 | |
| 7 | Water Absorption | With reference to ASTM C1016-14 and the client’s requirement | 1% | |
Application of Weather Strip for Windows E P D I Profile
- Glass Door
- Sliding Window
- Wardrobe Sliding Door
Features of E/D/P/I Shape Self Adhesive Door Jamp Weatherstrip
- High and Low-temperature Resistance
- Anti-stress
- Anti-aging
- Excellent Durability
Benefits of E/D/P/I Door Window Gasket Soundproof Seal Strip
- With exceptional flexibility and strength, they are not easily distorted after compression;
- Excellent resistance to weather, aging, wind, and ozone;
- With good resistance to temperature ranges (- 50°C~+150°C), they can be commonly applied to high and low-temperature areas, coastal areas, strong ultraviolet radiation areas, and medium and high-rise buildings;
- Good sealing performance provides resistance to heat, chill, dust, insects, noise, and moisture;
- Great abrasion resistance, chemical resistance, shock resistance, thermal and acoustic insulation;
- With environmental-friendly materials which are friendly to our planet, and without unpleasant odors which are harmless to our health;
- Easy to install, ready to use, no fixings required;
- 4 colors, 4 types, and multiple size options can perfectly satisfy your demands.
