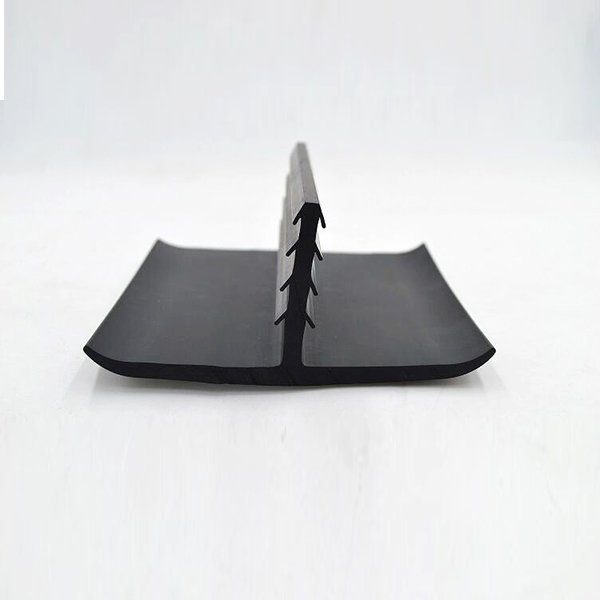

T Section Rubber Seal Features
|
Material
|
EPDM rubber
|
|
Color
|
Black, any other color is available
|
|
Hardness (Shore A)
|
70 ±5 as standard or per request
|
|
Specific gravity
|
1.2 to 1.35 g/cm³
|
|
Tensile strength
|
10MPA
|
|
Temperature Range
|
-40 °F – 248 °F (-40°C – 120°C)
|
|
Tolerance
|
RMA Standard Cross-sectional Tolerance E2,orper request
|
T Shape Rubber Seal Application

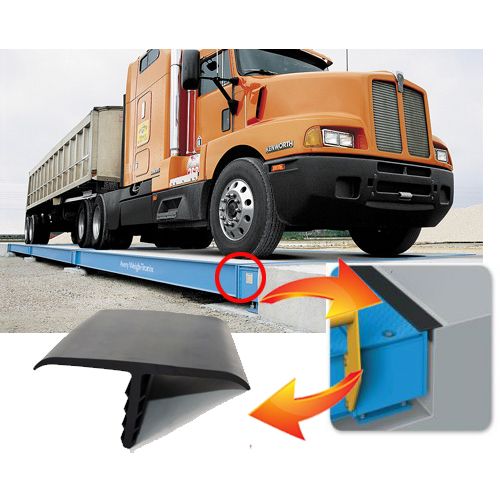

It is designed for use in truck scale applications to prevent spill-over into the pit.
The T-shaped rubber strip easily installs between the frame and scale,
and is available in various lengths or by the foot.
T Section Rubber Seal Strip Advantages
- Better flexibility & compression properties
- Excellent resistance to chemicals & solvents
- High-temperature resistance
- Good electrical & mechanical properties
- Prevents Stretching
- Reduces Waste
- Improves Sealing
- Good Weathering Properties
