Kerfed Weather Stripping Informsation
|
Material
|
PE film, PU foam, PVC rigid flange, PP+TPE compound skeleton
|
|
Manufacturing Process
|
made of PE film and liquid PU foam through dispensing technology and a thermoplastic process combined.
|
|
MOQ
|
3,000 meters
|
|
Color
|
white, coffee color, black, dark brown, light yellow, gray
|
|
Packing
|
packed in rolls with cartons or customized to customer needs
|
Kerf Door Seal Technical Data Sheet
| Serial No. | Test Item | Standard Requirements | Field Test Results | Single Decision |
| 1 | Appearance | Pressure pit, uneven thickness, swelling body, obvious fall off or powder, and other defects. | It fits the bill | Qualified |
| 2 | Allowance for size | Width deviation ± 5% | +0.22% | Qualified |
| Altitude deviation ± 5% | -0.18% | Qualified | ||
| 3 | Indentation Hardness | The cutting length of 100mm is 60% of the applied height of the product, and the results meet the requirements of the “Product Drawing” | / | / |
| 4 | Compression Set | The product was compressed under the condition of 23±2° for 24 hours, and the compression deformation was ≤ 4% | / | / |
| 5 | High Temperature Test | The product was compressed under the condition of 70±2° for 168 hours, and the compression deformation was ≤ 4% | / | / |
| 6 | Low Temperature Test | The product was compressed under the condition of -20±2° for 22 hours, and the compression deformation was ≤ 4% | / | / |
| 7 | Ultraviolet aging test | Light: 48°C, Condensation: 50°C, UV: 70°C, 1152 hours without damage | It fits the bill | Qualified |
| 8 | Fatigue Test | Imitates the door window switch to use 200,000 times, does not have the obvious change | It fits the bill | Qualified |
| 9 | Friction Test | Compression 50%, friction 200,000 times, no damage | It fits the bill | Qualified |
| 10 | Stripping Force | Adhesive tape and product 180° peeling force ≥4N | 6.8N | Qualified |
| 11 | Initial adhesion | ≥12N | 15.3N | Qualified |
| 12 | Holding time | ≥30min | 45min | Qualified |
| 13 | Signs | Conformity label, the label shall be affixed correctly, content and products consistent | It fits the bill | Qualified |
| 14 | Packing | Packing should be in line with the “Packaging Inspection Reference” requirements, carton printing should meet the requirements, packaging belt tightness moderate, turns meet the requirements | It fits the bill | Qualified |

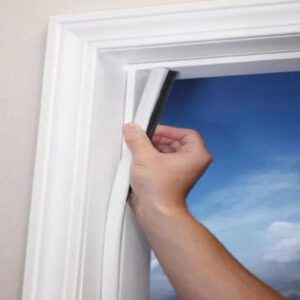

Kerf Door Weatherstripping Applications
Kerf door weather stripping features a unique inverted design. It is designed to seal the seams and gaps of most doors and windows that have irregular grooves or grooves. This makes kerf weatherstrip more stable and durable. Door kerf seals are commonly used in various internal and external slit grooved doors and windows, security doors, patio doors, glass doors, sliding doors, wardrobes, etc. to form a tight seal. It is considered a perfect replacement for old door frame weather stripping.
Features of Vinyl Clad Weatherstrip Kerf Door Seal
- Tear and wear-resistant
- Anti-corrosion
- Anti-collision
- Waterproof
- Soundproof
- Insect prevention
Door Weatherstripping Kerf Strip Applications
- The kerf door weatherstripping uses highly elastic materials. Including tougher PE protective film, highly resilient PU foam, and rigid PVC flange. It can withstand extreme weather conditions, and keep interior temperature well-balanced throughout the year, to deliver a warm and comfortable living environment.
- A unique inverted design is more scientific without applying adhesive to the slot or kerf. It is easier to install and fix in the right place, more stable, and durable to use for years.
- A good energy-saving choice for you through sealing out cold air from outside and keeping warm air in the house. It reduces unnecessary energy consumption and helps save our energy bills.
- Prevent outdoor noise, moisture, wind, unwelcome insects, and bugs from entering our lovely house.
- An environmentally friendly material keeps you away from invisible and harmful odors, to make you live safely and healthily.
